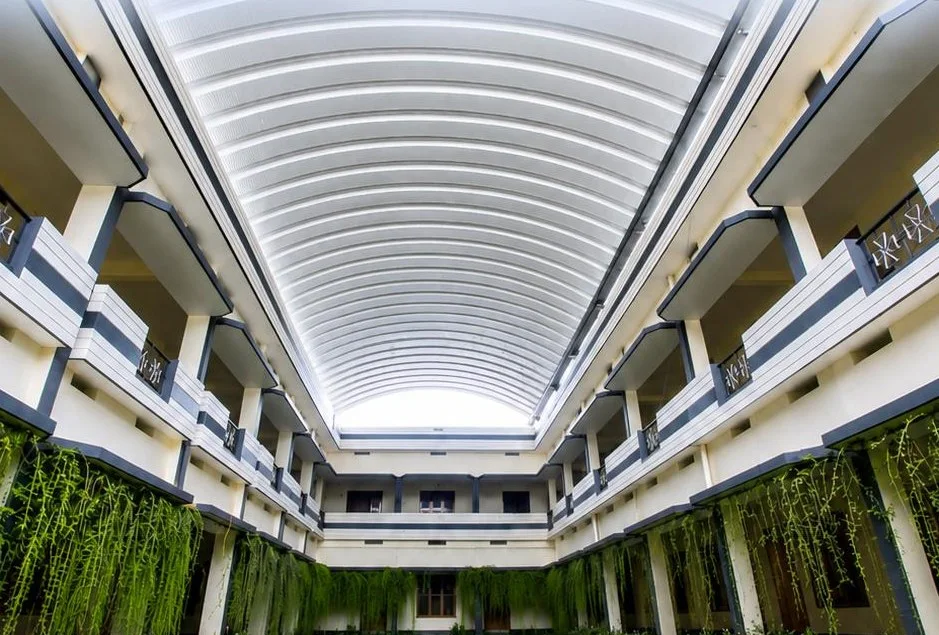

A RoofWithout Truss
Clear-span arch roofs from 1 to 36 metres, made from premium pre-coated Galvalume steel and held up by their own curved shape. No trusses, no columns in the way, no nuts and bolts on the roof.
no trusses
10,000 sq ft
Innovative roofing for strength, beauty and durability
iRoofing Enterprises is a trusted name in truss-less, self-supported arch roofing, and has been delivering innovative roofing solutions for more than 12 years. We design and build clear-span roofing systems that combine strength, durability and architectural appeal without conventional trusses.
Backed by experienced engineers, skilled craftsmen, premium Galvalume steel and a commitment to quality, we have completed more than 1,000 projects for homes, businesses, institutions and government clients. Our head office is in Kochi, Kerala, and we have sister concerns in India, the UAE and Qatar.
Choose your roof

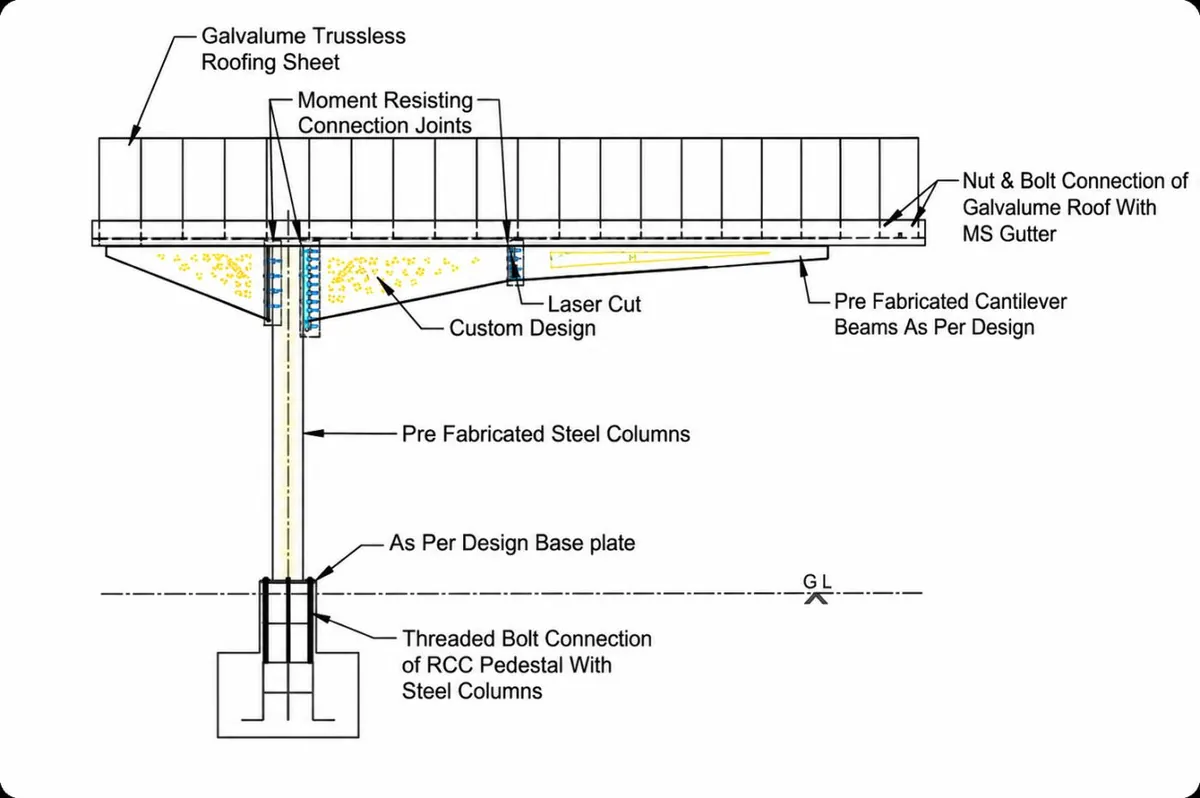

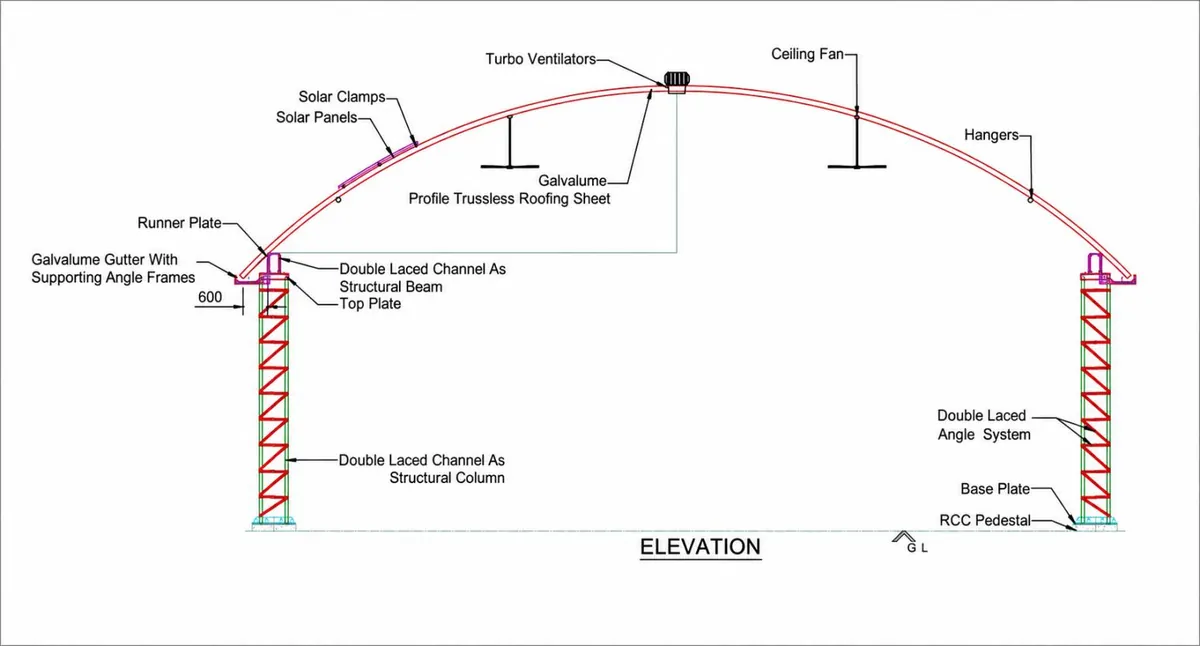

Eight proven designs for car porches, parking, courtyards and large commercial spaces. We can also customise the span, height, shape and finish.
Held up by its own shape
Profiled roofing sheets are fixed directly to the supporting structure at the sides. Their curved shape gives the roof its strength and stability, so no steel truss is needed.

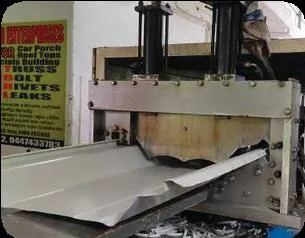

Cutting
Pre-coated Galvalume coil is cut to the exact panel length.

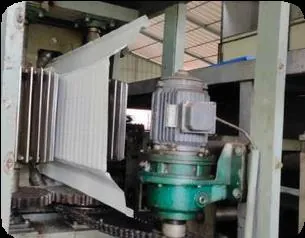

Curving
Each panel is profiled and curved to the designed arch radius.

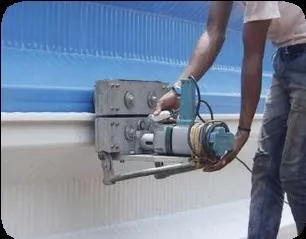

Sewing
Panels are interlocked with a seaming machine, without holes or bolts.

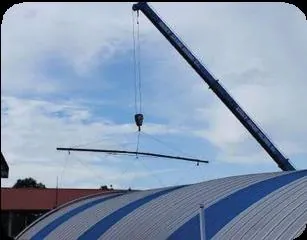

Assembling
Sections are lifted into place and fixed to the beams at the sides.
Technology, design & installation
- Self-supported system based on the arch principle.
- Design and engineering software for every project.
- High-grade pre-coated Galvalume steel, PPGL or aluminium as raw material.
- Imported, trailer-mounted forming machines travel to your site, so panels are made and installed at the same time.
- Installation speed of around 10,000 sq ft in 12 hours.
- Complete service: drawings, trained crews, project management and after-sales support.
Profile sizes
Beam options
- RCC gutter beam
- Structural steel beam
- V-gutter made of MS HR sheet
Why build without a truss?
You save time and money without giving up strength or durability.
Roofs we have built
From home car porches to school courtyards, churches, swimming pools and warehouses across Kerala.
Watch a roof go up
Our mobile forming unit and crew at work on a project in Palakkad.
Built from premium steel
| Sheet brands | Bhushan, Tata, JSW, Dongkuk |
| Material | High-grade pre-coated Galvalume |
| Thickness | 0.6 mm – 1.65 mm |
| Coating | RMP or SMP |
| Material strength | 300 – 350 MPa |
| Alloy composition | 55% Al + 43.5% Zn + 1.5% Si |
| Coating mass | 150 g/m² |
| Coil width | 0.914 m |
| Panel width | 0.31 m – 0.71 m |
| Preferred fasteners | HILTI |

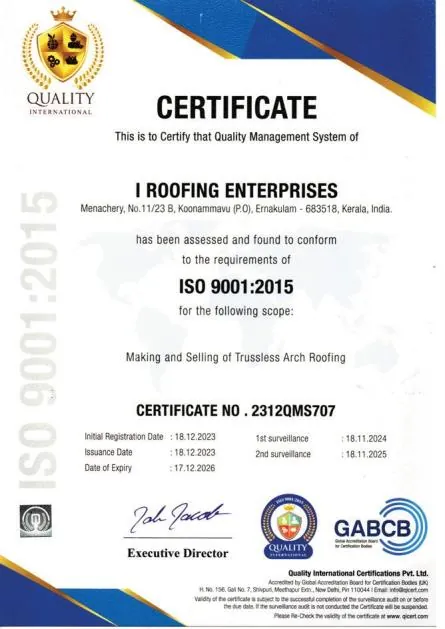

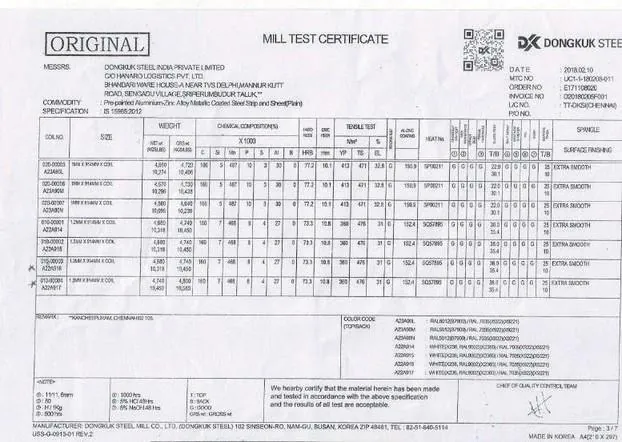

Quality you can check
Common questions
Why are iRoofing roofs quieter in the rain?
Do the roofs keep the building cooler?

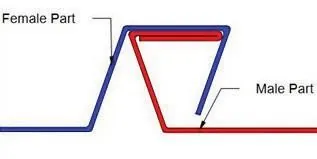

Are the roofs really leak-proof?
- Tight seals and overlapping joints keep water out.
- The interlock holds sheets firmly against wind uplift.
- Joints can move slightly with heat without opening up.
- Sheets line up accurately, so there are no gaps from misalignment.
How do arch roofs handle strong wind?

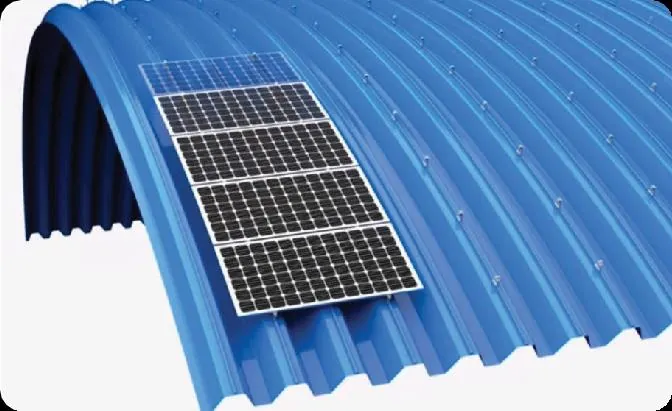

Can I fix solar panels on the roof?
Can you add ceilings, AC ducts or gutters?
Are the sheets pre-painted?
How big can the span be?
Trusted by institutions across Kerala
Kochi Metro Rail, Airports Authority of India, GAIL, Indian Railways, Central University of Kerala, Kerala PWD and Department of Education.
Asset Homes, Tulsi, Hi-Lite Builders, Olive Builders, Amphenol FCI, CUMI, Süd-Chemie, KSE and Indian Sports Centre.
Kodaikanal International School, Garden City University, Holy Innocents Public School and many more.
Lisie Hospital, Caritas, Unity Hospital, N.S. Co-operative Hospital and others.
Let's plan your roof
Tell us about your space. We'll suggest the right model and send you a quotation.
